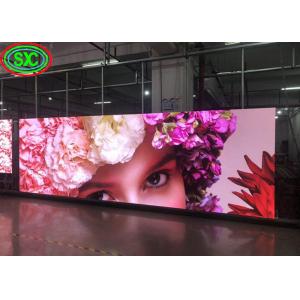

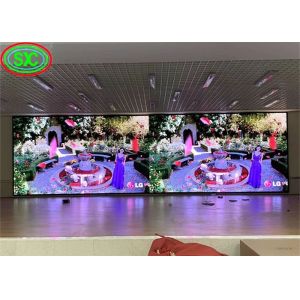

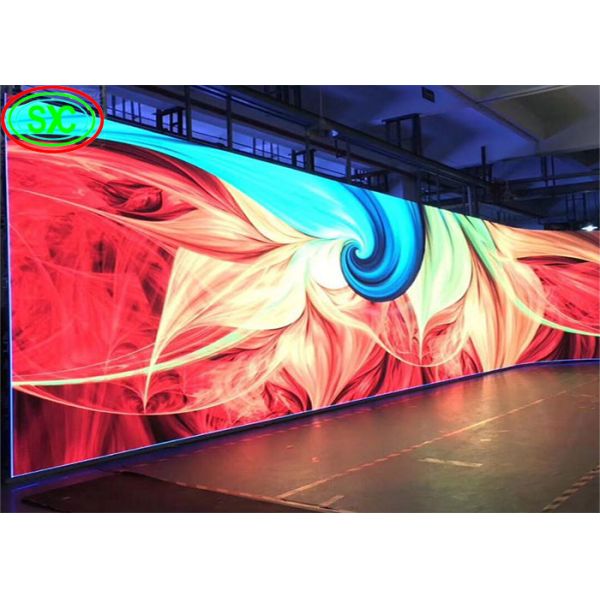

Indoor led Display 500*500mm 500*1000mm P3.91 P4.81 Rental led
Display Led TV Wall
This is the indoor series,but also can be used semi outdoor,we have
all kinds of types,so can provide
you the rich choices.
The indoor series we have
P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10.
And the outdoor series have
P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8,P10,P12,P16,P20.
By the time,except these tips,we still have other items,like the
Poster screen,transparent screen.
If you have interest,just contact us and we will answer you in 24
hours.
Thank you for your support and welcome to send us your inquiry!!!
Specifications:
| Resolution/mm | 3.91 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 65410/square meter |
| Module resolution | 64*64 |
| Module size/mm | 250*250 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/16) |
| Frame rate | 60Hz |
| Refresh frequency | >1000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <700W |
| Average power:/square meter | <220W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Waterproof | IP34 |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC220V/60HZ |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Features:
1) High refresh rate , high brightness and high contrast which make
the screen without any delay and smear phenomenon under directly
sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped
with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing
environment
4)Wide viewing angle: The horizontal and vertical viewing angles
are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat
dissipation, cost-effective .
6)Error detection and monitoring:it can monitor the inner
temperature,voltage,cooling fans etc and error detection
automatically.
7) High reliability: using distributed scanning technology and
module design technology that make higher reliability and
stability.
8) Steady and reliable system:with strong anti-interference ability
and long service life that can continually work for over 24 hours,
and it’s easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes
the image clearer and the layering stronger.
10) Convenient installation and maintenance of display modules.
Info about us:
SCXK has been specialized in LED field since 2005. We are a leading
manufacturer and provider of technical solution of full color
indoor an outdoor ledisplay,rental LED display, led modules where
in Shenzhen ctiy,Guangdong province,China.
We have a professional team and a series of equipments.Every year
our products exported overseas and are popular among many foreign
countries,also in our own country you can find the many application
places.Such as station,airport,church,shopping mall,commercial
centure,concert and so on.
From statium to TV station,conference&events,SCXK Electronics
provide a wide range of eye-catching and energy saving LED screen
solutions to industrial,commercial and governmental markets
worldwide.
FAQ
Q. Can this LED display be installed permanently outside? ---A. A
series LED panel is for events use. It has no problem to be used
outdoor for events. But if need long time used outdoor, such as
install on truck or trailer, it is better to buy fixed LED display.
Q. How long time is needed to produce? ---A. Our production time is
7-15 working days. We have 500sqm indoor P3.91 led display stock
now, delivery time is 3 days.
Q. How long does shipping take? ---A. Express and air shipping
usually take 5-10 days. Sea shipping takes about 15-55 days
according to different country.
Q. What trade terms do you support? ---A. We usually do FOB, CIF,
DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do. ---A.
We offer DDP door to door service, you just need to pay us, then
wait to receive order.
Q. Do I need to buy other equipment to install LED screen? ---A.
You just need to prepare power distribution box, truss and
installation tool. We also offer one stop purchase if you want. We
can also offer stage lights and speaker.
Q.What is LED screen common size? --A. 16:9 and 4:3 aspect ratio is
popular.
Welcome to visit our website and inquire us more info,waiting for
you all the time!!!
