Full Color Indoor P4 Led Screen 512x512mm Die Casting Aluminum
Panel Rental Stage Led Video Wall Big Display Screen For Concert
♦ Quick Detail
1. Super lighter and thinner;
2. Easy to connection and uninstall;
3. It can display,words,texts,graphics and videos.
4. High resolution and high frequency dynamic image.
♦ Applications
LED display can be widely used in
advertising,multi-media,stadium,stage,rental show,transit
directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
♦ Product specification
| indoor SMD P4 |
| Lamp size | 2020 |
| Resolution/mm | 4 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 128x128 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

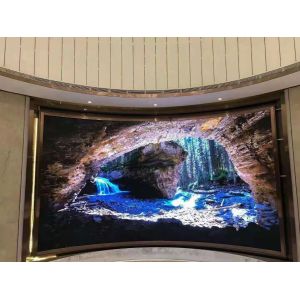

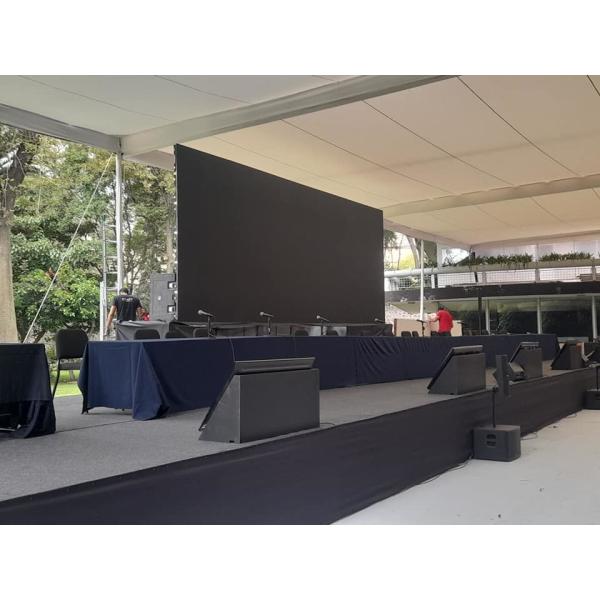

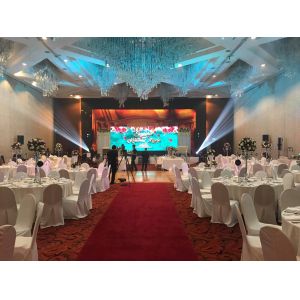

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
* Payment term: T/T 30% as deposit, and 70% before delivery. We'll
show you the photos of the products and packages before you pay the
balance.
* Lead time: Normally in 15~18 days after receiving your advance
payment. The specific delivery time depends on the items and
quantity of your order.
* Sample policy:
1) We can produce by your samples or technical drawings. We can
build the molds and fixtures.
2) We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
* Shipping port: Shenzhen, China
* Discounts: We offer discount for big quantity
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on LED display.
Q2: What is the warranty for your product?
A2: We are the only LED display manufacture can provide 3-6 years
warranty,the failed items can be repalced with the new order no
matter when you buy them,so you don't need to worry about the
quality problem if cooperate with us.
Q3: What is your MOQ?
A3: The MOQ can be only 1 PCS.
Q4: What's your lead time?
A4: The delivery time is 1~15 days which depend on detail item and
quantity.
Q5: Do you accept OEM/ODM?
A5: Yes.
Q6: Can we be your distributor?
A6: Yes,if your annuals sales much more than our other customers in
your market that you can be our distributor.
Q7: What is your company advantage?
A7: We have the industry's top R & D strength, can provide
customers with a variety of unusual solutions, customized
development of the high difficulty of the LED display.
