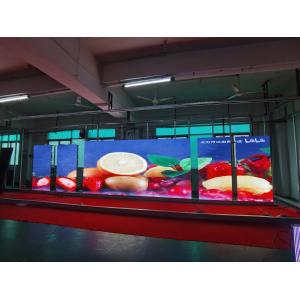

SCX LED studio/conference/church install 2000nits high brightness
KN-light Kinglight black SMD2021 indoor p3 led screen
Specifications
Advantages:
1. Gap free
Rental led display frame made by CNC machine, no gap after
assembling, and ensures a flatness screen.
2. Fast and easy set up
Fast locking system and modular cabinets for easy set up, saves
labor cost.
3. Neutrik data and power connectors, stable and reliable.
4. Noiseless power supply, quiet operation.
5. High contrast ratio with true black SMD, better color
uniformity.
6. Test button on each cabinet, indicates the working condition
before installation, time saving.
7. High refresh rate
Up to 6000HZ refresh rate, no scan line through TV camera, could be
used for TV studio, control room, show room etc.
8. High gray scale
High gray scale ensures the display have good performance.
9. Wide viewing angle
With wide viewing angle led lamps, could reach to 140 degree in
horizontal and vertical way.
10. High color uniformity
All the masks spray same color printing ensures the whole display
with best color uniformity.
Same batch LED lamps, same color and same brightness.
11. Low power consumption and long life span
Choose Nichia or Cree or Epistar led chip, save 25% or more power
cost, life span more than 100,000 hours.
12. Die-casting aluminum cabinets for better heat dissipation,
light weight, saving transportation cost.
13. Hanging and stacking possible, used for different
circumstances.
indoor P3 led diplay Specifications:
| SMD P3 |
| Resolution/mm | 3 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 111111dots/square meter |
| Module resolution | 64x64mm |
| Module size/mm | 192x192mm |
| View distance | 3-30m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 900cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/32 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | 3840Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
FAQ
Q1: What's the warranty of your LED Display screen?
A1: We have a 2-vear warranty for our led display screen, and
100,000 hourslife span of the led lamps .
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: we have a professional sales team and a 8
vears technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!For
post-sale service: We can instruct you how to use, adiust the
screens, and change the broken modules with spare.parts.Also, we
can send technicians to your country to solve problems. Mostly, our
led display will not have big problems within warranty time!
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and LC, At least 30%
deposit in advance, and the rest 70% before delivery Our average
Production time is 7-15 days, after receiving the deposit .
Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight
control system For asynchronous control: we use Onbon. or Xixun
control system.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 10
years, what we rely on.We have each standard process to make
quality productsIr any quality failures within warranty time
♦ Packaging and shipping
Wooden case or flight case package are available.
Eachinled has a perfect service system, including pre-sale service,
in-sale service and after-sale service. To provide high quality
service for our customers, we train every salesman with necessary
product maintenance knowledge and organized a Technology Supporting
Department with a group of excellent and professional engineers.
Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
