P1.2 P1.5 P1.6 P1.8 P1.9 P2 P2.5 P3 P3.3 P3.9 P4 P4.8 Customized
Full Color Screen/Display LED Rental Indoor for Stage
Specifications
| Pixel Information | Pixel Pitch | 3.91mm |
| Pixel Density | 65410dots/m2 |
| Pixel Configuration | SMD2121 |
| LED Wavelength | Red:615 nm - 635 nm |
| Green:520 nm - 535 nm |
| Blue:465 nm - 475 nm |
| LED Module | Size(mm) | 250(Width) * 250(Height) |
| Resolution | 64 (Width) * 64(Height) |
| Cabinet | Size(mm) | 500(Width) * 500(Height) |
| Resolution | 128(Width) * 128(Height) |
| Total QYT Module Per Cabinet | 2(Width) * 2(Height) |
| Material | Steel,Die casting Aluminum |
| Power | Input Voltage | 100-240V AC, 50/60Hz |
| Max Power Consumption | 800 Watt/sqm |
| Avg. Power Consumption | 350 Watt/sqm |
| Brightness | 5000cd/m2 |
| Brightness Uniformity | Luminance Discrepancy < 5% |
| Best Viewing Angle | Horizontal:140°,Vertical:140° |
| Ambient Conditions | Temperature Range | Working:-20deg. to +65deg |
| Operating Humidity | 10%-90%RH |
| Ingression Protection Grade | IP40 |
| Processing | Scanning Mode | 1/32scan |
| Refresh Rate | >2460Hz, Adjustable(depends on control system) |
| Signal Input | DVI, Composite Video for Live Video |
| Supported Networking | Through LAN/WAN, RS 232/RS485 |
| Controller | Linsn or Nova |
Features
1. Ultra-high resolution and wide viewing angel.
2. Fixing and rental use creates more applications.
3. High refresh rate 1920Hz, best scan method for energy saving, perfect grey level.
4. Wireless: seamless installation simplifies the complex inner structure, improving its safety and stability.
5. Thin: it is featured by high strength, toughness, precision and it is hard to be
deformed.
6. Easy: the die-casting aluminum cabinet is modular designed, each cabinet
of the screen can be easily dismantled and assembled(replaced).
Product Details

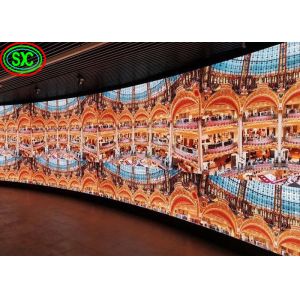

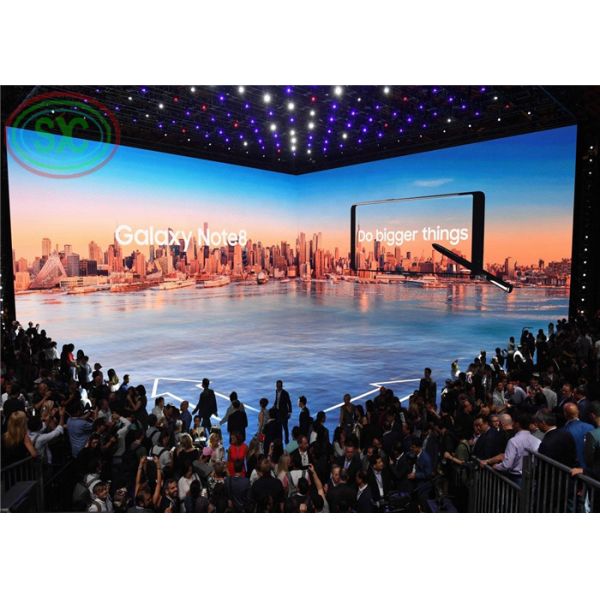

Application
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
